Product Description

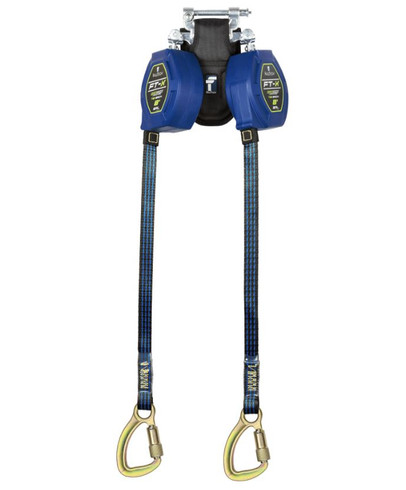

FallTech 8' FT-X™ EdgeCore™ Tie-Back Class 2 Leading Edge Personal SRL, Twin-leg with Steel 5k Carabiner | MFG # 84108TP8
FEATURES
- Innovative EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, providing extended service life and durability when used in tie-back applications
- Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
- Features comprehensive fall clearance charts and tables inside the energy absorber cover
- Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
- Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
- Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
- Features steel carabiner leg-end connectors with 5,000 lb rated gate for tie-back applications
- Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment down time.
- Replacement retractable part number is 84108RP8
- Complies with ANSI Z359.14-2021 Class 2 SRL-P.
MATERIAL SPECIFICATIONS
- LifelineEdgeCore™; 5,000 lb min. static strength
- Energy AbsorberPolyester tear-away
- Anchorage Connector Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength
- Dorsal Connector Aluminum alloy; 3,600 lb min.
PERFORMANCE SPECIFICATIONS
- Static Strength3,600 lb min.
- ANSI SRL Class: Class 2
- Avg. Arrest Force1,350 lb max.
- Max. Arrest Force1,800 lb
- Max. Arrest Distance42"
- ANSI User Capacity130 to 310 lb max.
- OSHA User Capacity130 to 420 lb max.
COMPLIANT WITH:
ANSI Z359.14-2021OSHA 1926.502 and 1910.66
